2m und 70cm FM-Bandplan

flagg-deu

flag-britt

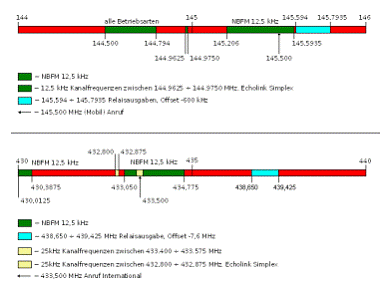

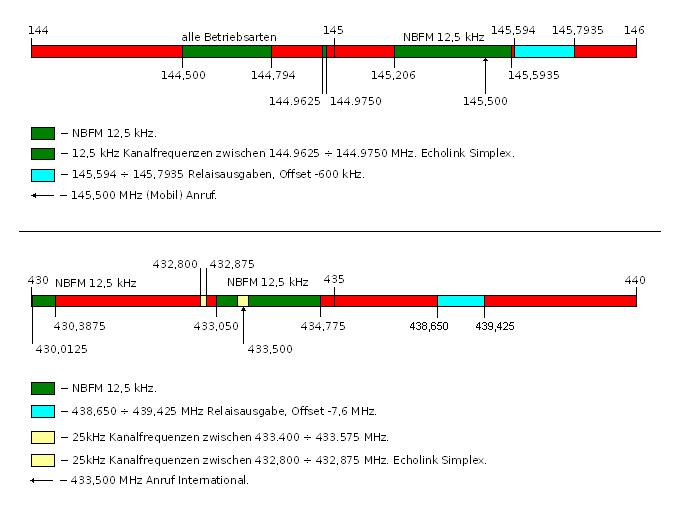

Die Bandpläne für den Amateurfunkdienst werden international von der International Amateur Radio Union (IARU) herausgegeben, sie sind Empfehlungen und nicht rechtsverbindlich. Die Abbildung 1 stellt meine Interpretation der IARU Bandplänen für den 2m und 70cm FM-Funk.

lupe_17x22px.jpgAbbildung 1, Bandplan 2m und 70cm

My interpretation of the IARU band plans for 2m and 70cm FM communication.

Meine UKW Ecke

flagg-deu

flag-britt

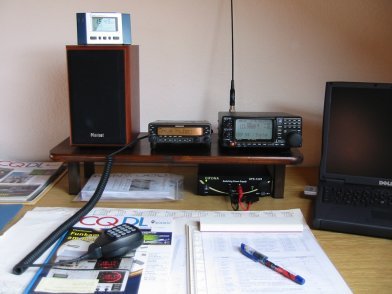

Meine VHF/UHF Station:

shack_smallAbbildung 2,  Jahr 2007

My VHF/UHF Station:

Transceivers:

1. Kenwood TM-V71E Mobiltransceiver mit EchoLink Funktionalität und bis zu 50W Sendeleistung auf 2m und 70cm.

2. Yaesu FT-60E 2m/70cm Dualband Handfunkgerät.

3. Yaesu VR-5000 Breitbandempfänger von 100 kHz bis 2.6 GHz.

Transceivers:

1. Kenwood TM-V71E full dual bander mobile transceiver with EchoLink mode and 50W output power on 2m and 70cm.

2. Yaesu FT-60E 2m/70cm dual bander portable transceiver.

3. Yaesu VR-5000 wideband receiver from 100 kHz to 2.6 GHz.

Antennen:

1. DIAMOND X-200 2m/70cm Dualband-Stationsantenne - 250cm.

2. F9FT Yagi 2m (4 Elements, 8,9dBi).

3. 300Ohm Twinlead J-Pole für 2m und 70cm. Selbstbau.

4. Groundplane für die VHF Airband. Selbstbau.

Antennas:

1. DIAMOND X-200N 2m/70cm antenna - 8.2ft.

2. F9FT Yagi 2m (4 Elements, 8,9dBi).

3. 300Ohm Twinlead J-Pole for 2m and 70cm. Homebrew.

4. Ground plane for the VHF Airband. Homebrew.

Kenwood TM-V71E

flagg-deu

flag-britt

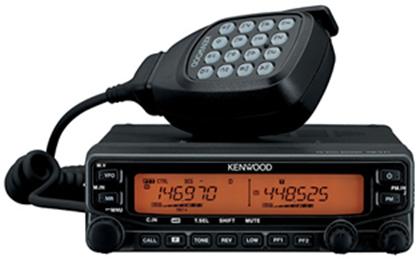

Mein Kenwood TM-V71E Transceiver wird als Stationsgerät für die 2m und 70cm Kommunikation genutzt.

TM-V71E

Abbildung 4, Kenwood TM-V71E

I’m using my Kenwood TM-V71E Transceiver only in shack for the 2m and 70cm communication.

Pro:

1. Exzellente Modulation auf allen Bändern.

2. 50W Sendeleistung auf 2m und 70cm.

3. Vorbereite für den EchoLink Betrieb als SysOp.

4. Speicherkannele für EchoLink.

5. Firmware-Update wird regelmäßig publiziert.

6. Kostenlose Software von Kenwood.

Pro:

1. Excellent modulation on all bands.

2. 50W RF Power Output on 2m and 70cm.

3. Ready for the SysOp EchoLink use.

4. Special memory for the EchoLink use.

5. Continuous firmware update.

6. Free software from Kenwood.

Kontra:

1. Group- und MemoryScan zu einfach gehalten.

2. Multiuser Support nur teilweise implementiert.

3. Keine USB Schnittstelle.

4. 10m Band wäre sehr nützlich.

5. Kostenlose Software von Kenwood leider nur für .NET. Wurden die Linux und Mac Nutzer vergessen?

Contra:

1. Group- und MemoryScan too simple.

2. Multi user support partially implemented.

3. Missing USB port.

4. 10m band could be useful.

5. Free software von Kenwood available only for .NET. What about Linux and Mac users?

Yaesu FT-60E

flagg-deu

flag-britt

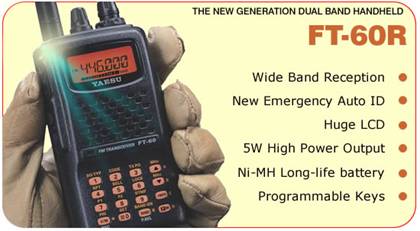

Alles was ein Dualband Handfunkgerät benötig ist da und kein Bisschen mehr.

Mit dem FT-60E geht Yaesu ein wenig "back to the roots", denn das FT-60E ist kein Gerät mit 1000 neue Funktionen Wunder- transceiver, sondern konzentriert sich auf die wesentliche Funktionen. Ich nutze das Gerät mit einer Diamond RH-772 Antenne.

Abbildung 5, Yaesu FT-60E

All what the dual band portable transceiver need is available.

With the FT-60E goes Yaesu little bit “back to the roots”, FT-60E isn’t a miracle transceiver with 1000 new features but is offering essential functions. I’m using this device with the Diamond RH-772 antenna.
